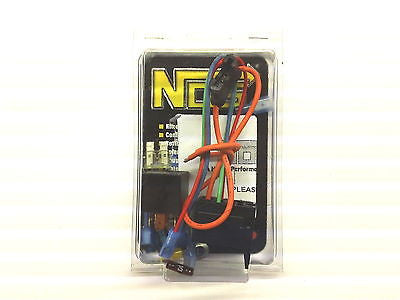

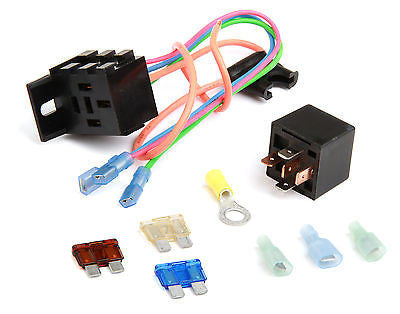

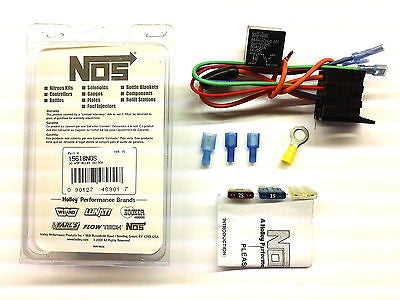

You are bidding on a NOS 30 Amp Relay Switch Part# 15618 It is brand new in its packaging as shown. The NOS power relay is designed to eliminate the high amperage current from damaging control components such as switches, microswitches, shift handle, buttons, etc. The power contacts in the relay will carry a maximum of 30 amps. Please pay strict attention to the switch wiring. If you have previously installed an NOS nitrous kit, you will note that the switches are connected differently. If you are upgrading your existing system, do not follow the wiring diagram from your original instructions. Use only the diagram shown here. Begin by mounting the relay close enough to the battery to allow the heavy 12 gauge orange wire that contains the fuse to be attached directly to the positive terminal of the battery. The ring terminal I.D. is 3/8” to accommodate the attachment bolt of the side terminal batteries. The battery post of the Ford style starter relay may also be used. However, you must be sure that the terminal, which is directly connected to the positive post of the battery is used. Complete the wiring by following the diagram below. Do not reverse the positions of the throttle switch or pushbutton (whichever you have) and the arming switch. If the switches are reversed, the light in the arming switch will not work correctly.
Shipping will be free to the US only. International shipping is available at an extra cost to be paid by the buyer, calculated, depending on the buyers location. Item will be shipped within one business day upon receiving payment for your purchase, and if in time, will be shipped the same business day. Heintz Brothers is a locally owned small business in operation for over 40 years, meeting the racing needs of oval track racers, drag racers, dirt track racers, NASCAR racers, and racers of any kind. We specialize in engine building, parts sales, and customer service in the racing industry. Our commitment to excellence and the business is shown by the induction of Heintz Brothers into the NC Drag Racing Hall of Fame. Please feel free to contact us with further questions. Our salesmen are standing by. We have two stores located in Statesville and Concord, NC. We appreciate the opportunity to meet your performance racing needs and thank you for your business. We hope to have the opportunity to serve you in the future. Check out our ABOUT ME Ebay page for more information. Feel free to ask us about other parts not listed on EBAY as we build our online store with new parts each week. |
