MSD 8225 MSD Ignition GM HEI Distributor Coil-Stock Replacement Coil

Regular price $94.95 Sale

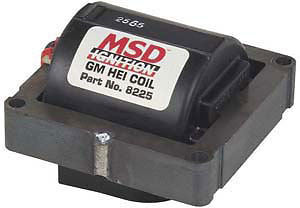

You are bidding on an MSD Ignition GM HEI Distributor Coil

Part# 8225

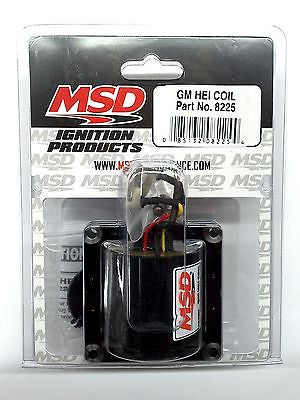

It is brand new it its original packaging

Includes:

Coil,

4" Ground wire,

Rubber Isolator,

Rotor Bushing,

4 Mounting Screws

HEI owners now have a choice to replace their stock coil with the MSD High Energy Unitized Coil for GM HEI Distributors. This coil is a direct re­placement of the stock coil and offers increased spark energy when used with the MSD HEI Module, PN 83645.The coil features special low induc­tance, high temperature windings which charge faster to give you increased spark energy at higher rpm. The premium epoxy filled construction is designed to withstand harsh race applications as well as the wear and tear that daily usage dishes out, and still deliver more spark energy to the spark plugs

  • Direct performance replacement for GM HEI coil-in-cap distributors
  • 70:1 turns ratio and lower primary resistance produce high voltage output
  • Full power sparks to 9,000 RPM when used with 8364 MSD HEI Module
  • Recommended for use with MSD HEI Module PN 8364
  • CARB E.O. Approved

Coil Specs
Turns ratio: 70:1
Primary resistance: .31 OHMs
Secondary resistance: 9.2K OHMs
Inductance: 3.5 mH
Maximum voltage: 42,000 Volts
Peak current: 200 mA
Spark duration:

200 uS



Shipping will be free to the US only. International shipping is available at an extra cost to be paid by the buyer, calculated, depending on the buyers location. Item will be shipped within one business day upon receiving payment for your purchase, and if in time, will be shipped the same business day.
